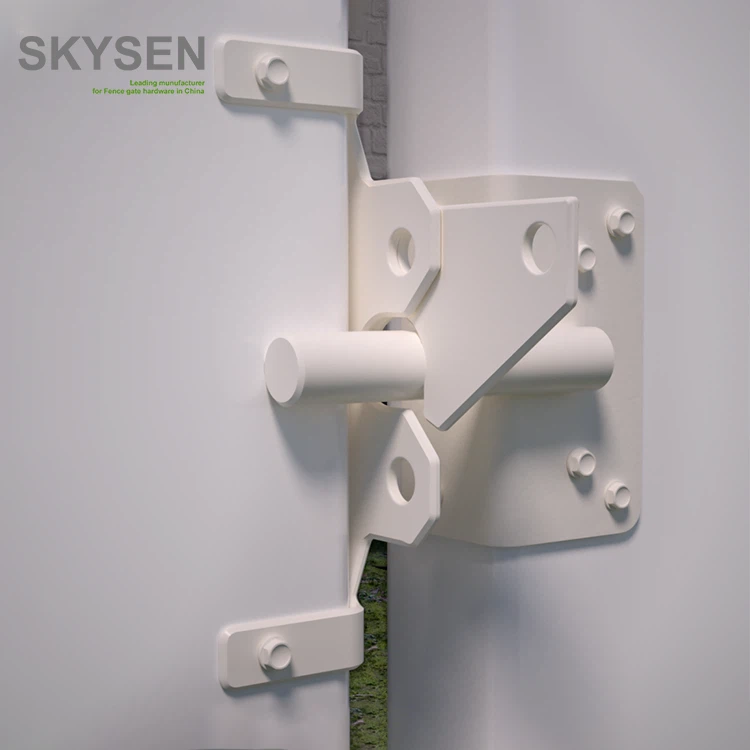

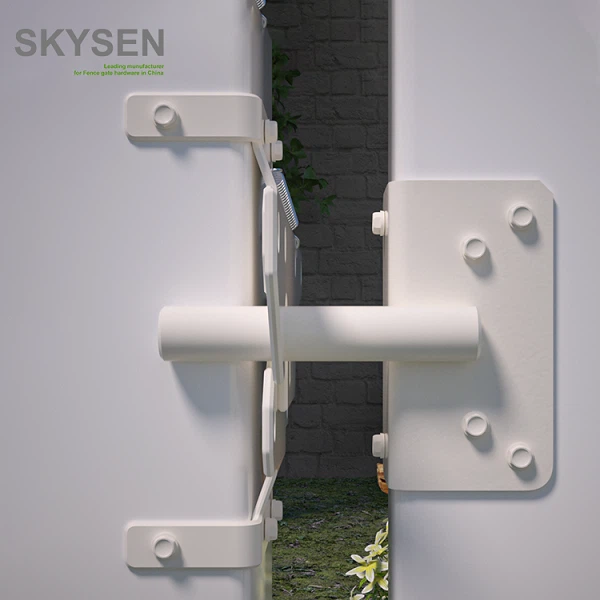

Vinyl Fence Locking Latch

vinyl fence locking latch

Product



Model No:

SKNW2066

Size:

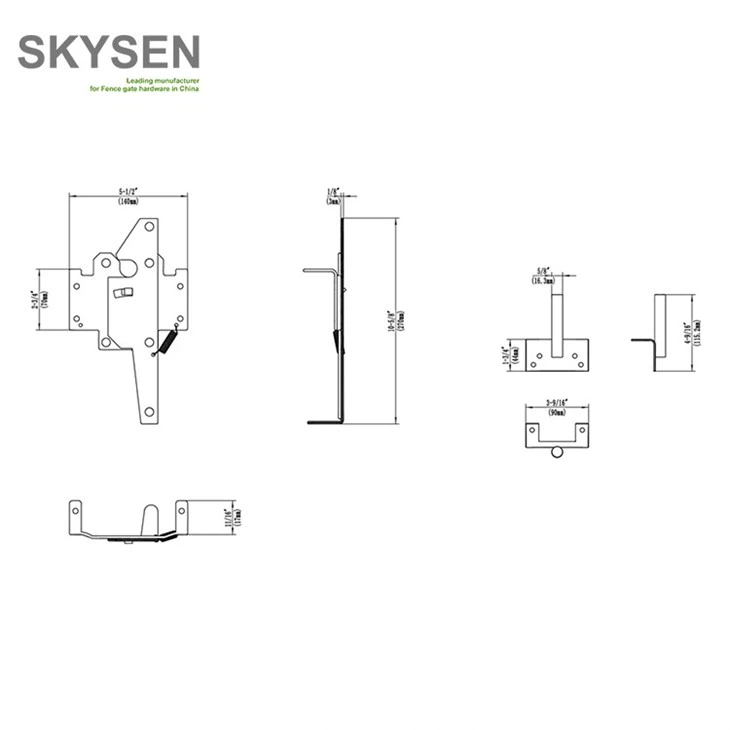

10-5/8"×5-1/2"

Material:

Carbon steel/SS304

Fit for:

Wooden gate /vinyl gate

SKYSEN vinyl fence latches feature a fiberglass reinforced core with a UV-resistant vinyl coating, designed for wood/vinyl fences. The spring-driven mechanism requires only 15N of operating force to achieve automatic latching, and the corrosion-resistant components pass 2000+ hours of salt spray testing (ISO 9227). Pre-installed stainless steel springs and nylon washers eliminate metal contact and prevent electrochemical corrosion. As a professional manufacturer, SKYSEN certifies products for use in temperatures ranging from -30°C to 70°C to meet the needs of equestrian facilities.

Mechanical properties:

100,000 opening and closing fatigue tests (equivalent to 15 years of farm use), spring force attenuation ≤ 8%

50kg weight 1m height drop impact test, no structural cracks in the lock body (refer to EN 942 standard)

Environmental tolerance:

45 days of wet heat cycle test (70℃/95%RH → -30℃ alternating), dimensional change rate <0.3%

Acid rain simulation test (pH4.0 solution spray), surface erosion depth <0.01mm/year

Chemical compatibility:

Resistant to common pesticides (such as glyphosate) splashing, no swelling in 72 hours of contact

Animal excrement corrosion test, no embrittlement in an environment with ammonia concentration of 5%

Field verification:
36 months of monitoring on a farm on the coast of Cornwall, UK showed that metal connectors had zero corrosion in a high salt spray environment, and the life of galvanized steel locks was extended by 300%. All tests were certified by TÜV Rheinland and comply with CPR 305/2011 Building Materials Directive.

Carbon steel is an iron-carbon alloy with a carbon content of 0.0218%~2.11%. It is based on iron, carbon is the main alloying element, and contains a small amount of impurities such as manganese, silicon, sulfur, and phosphorus.
Its characteristics are simple composition, mature production process, and obvious changes in performance with carbon content: low carbon steel (≤0.25%) has good plasticity and is easy to weld; medium carbon steel (0.25%~0.6%) has balanced strength and toughness; high carbon steel (>0.6%) has high hardness and strong wear resistance.
The advantages are low cost, easy smelting and processing, and the performance can be adjusted by heat treatment, which is suitable for large-scale production. It is widely used in machinery manufacturing, construction, automobiles and other fields, and is one of the most widely used basic materials in industry.

Excellent material

Stainless steel plate, high corrosion resistance, anti-rust, stable structure, uniform force, cross-border supply

Various specifications

Manufacturers supply a variety of specifications, good stability, fine workmanship, high precision

Can be customized according to drawings

Products can be customized according to drawings and samples, with various models and specifications. Professional engineers are responsible for following orders

•
  Intelligent locking system

  Automatically trigger locking at 15° tilt, 40% more efficient than traditional latches (tested 5,000 cycles without failure)

•
  Anti-twist structure

  3.2mm ribbed reinforcement design, withstands 350kg lateral pressure without deformation (ASTM D790 test)

•
  Low temperature adaptability

  Maintains flexibility at -30℃, 92% impact strength retention (refer to GB/T 1843 standard)

•
  Anti-mistouch safety

  Two fingers need to press 5mm to unlock in the locked state, effectively preventing livestock from accidentally opening

•
  Color stability

  Color fastness of ΔE≤2.5 (ISO 105-B02), no fading for 10 years

•
  Accessible design

  55mm ultra-wide wrench space, can be operated with gloves
