American Fence Gate Hinge
Model: SKN2226
Material: Steel
Finish: Galvanized + Black powder coated
Size: 193mm x 66mm (THK: 3mm)
Categories: Fences, Trellises & Gates, Security Fences, Fence Accessories, Fence Gates, Fence Hardware
Surface electrophoresis/spray coating for long-lasting, fade-resistant colors
Global wholesalers, distributors, contractors, and importers
MOQ: 100 sets, OEM/ODM supported
As a professional carbon steel heavy-duty hinge supplier, SKYSEN offers OEM/ODM services.
Base Material: High-quality Q235 carbon steel (ASTM A36 equivalent), high tensile strength (≥410MPa) and impact resistance, suitable for heavy-load scenarios.
Thickness: 5mm/6mm/8mm optional (customizable for special needs), thicker than standard hinges to enhance load-bearing capacity.
Surface Treatment: Electroplating (zinc/nickel) or hot-dip galvanizing, corrosion-resistant (salt spray test ≥48 hours), rust-proof and weatherproof for outdoor use (adapt to -40℃~60℃ temperature range).
Material & Craftsmanship
Base Material Options:Standard: A36 carbon steel (American standard equivalent to Q235), tensile strength ≥ 400MPa, suitable for general outdoor use.
Premium: 304/316 stainless steel (optional), for coastal, humid, or corrosion-prone environments.
Thickness & Structure:Hinge Leaf Thickness: 4mm/5mm/6mm (customizable), optimized for American fence gates (typical door weight 50-200kg).
One-piece forging or precision stamping (depending on size), no weld defects-ultrasonic tested for structural integrity.
Surface Treatment:
Carbon Steel: Hot-dip galvanizing (ASTM A123) + electrostatic powder coating (RAL colors available: black, brown, gray-classic American fence tones).
Stainless Steel: Passivation or brushed finish, rust-proof and low maintenance.
Corrosion Resistance:
Carbon Steel: 72-hour salt spray test (ASTM B117), suitable for most US climates (zones 3-9).
304 Stainless Steel: 500-hour salt spray test, ideal for coastal areas (Florida, California) or high-humidity regions.
Size details
Technical Specifications
Size Range (American Common Sizes):
Leaf Dimensions: 3"x2" / 4"x3" / 5"x4" (inch, standard US fence hinge sizes) or 75x50mm / 100x75mm / 125x100mm (metric).
Pin Diameter: 5/8" (15.88mm) / 3/4" (19.05mm) / 1" (25.4mm) - high-strength steel pin with lubricated sleeve for smooth rotation.
Mounting Holes: 4-6 holes (diameter 3/8" / 10mm), compatible with US standard bolts (UNC thread).
Load Capacity:
3"x2" (4mm thick): 80kg per hinge
4"x3" (5mm thick): 120kg per hinge
5"x4" (6mm thick): 180kg per hinge
Recommended for single/double fence gates (max door width: 3m, max door weight: 300kg with 2-3 hinges).
Functional Parameters:
Opening Angle: 180° full swing, 360° swivel option (customizable for ranch gates).
Rotation Torque: ≤1.2N·m, silent operation (nylon bushing included to reduce metal-on-metal friction).
Temperature Range: -40°F to 180°F (-40℃ to 82℃), adapted to US extreme weather (snow, heatwaves).
Package & Shipping (US-Focused Logistics)
Packaging: Individual blister packs + corrugated cartons (100 pieces/carton), labeled with US standard product information (ANSI certification, size, load capacity).

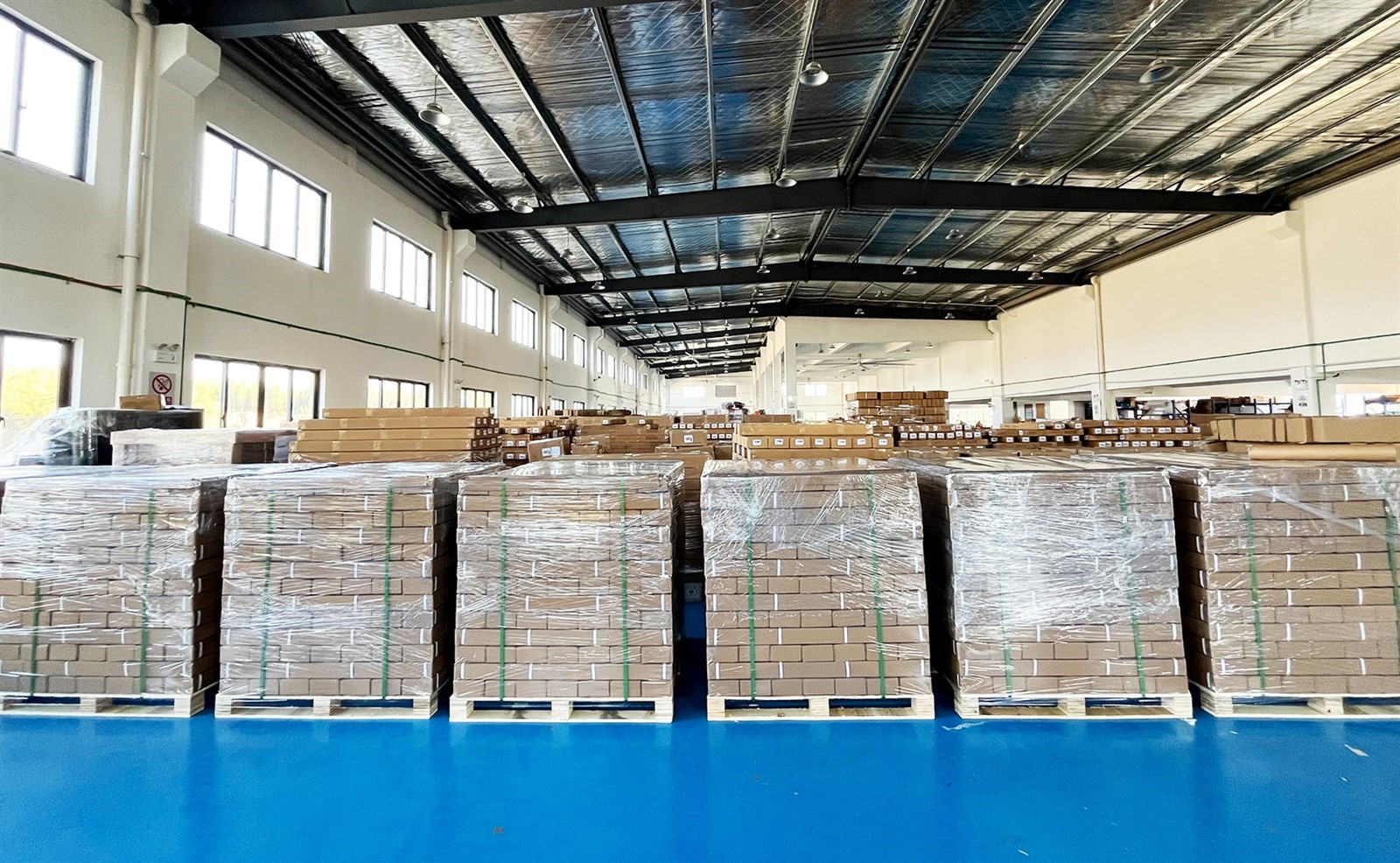

Factory Display
Packaging & Shipping
Partner Brands
We have worked with many of the world's leading brands, and almost all of our co-operators have been satisfied with our products and services and have continued their cooperation for many years. We are looking forward to your enquiry,let's cooperate and win together!
Who trusts us
FAQ
Q: Are these hinges compatible with standard American 4x4" fence posts?
A: Yes! The hinges are designed to fit US standard 4x4" (100x100mm) fence posts, with pre-drilled holes matching US 3/8" bolts. For 6x6" posts, we offer extended mounting plates (customizable upon request).
Q: What's the difference between carbon steel and stainless steel options for US climates?
A: Carbon steel (hot-dip galvanized + powder coated) works for most US regions (zones 3-9) and is cost-effective. 304/316 stainless steel is recommended for coastal areas or high-humidity regions, as it resists salt air corrosion better.
Q: Can these hinges be used for double swing ranch gates?
A: Absolutely. For double ranch gates (max width 3m, weight 300kg), we recommend using 3-4 pieces of 5"x4" (6mm thick) hinges (180kg load capacity each) - one top, one bottom, and one middle hinge per gate leaf for stability.
Q: Do you provide US standard mounting hardware (bolts, washers) with the hinges?
A: Yes, each hinge comes with US standard UNC-threaded bolts (3/8" x 2") and lock washers, made of the same material as the hinge (carbon steel or stainless steel) to ensure corrosion resistance and compatibility.
Q: How to reduce noise when opening/closing the fence gate?
A: All hinges include a nylon bushing between the pin and leaf, which eliminates metal-on-metal friction and reduces noise. For extra quiet operation, we offer optional rubber gaskets.
