Wooden Field Gate Fittings

wooden field gate fittings

Product



Model No:

GH1111

Material:

Carbon steel/SS304

Fit for:

Wooden gate /Vinyl gate

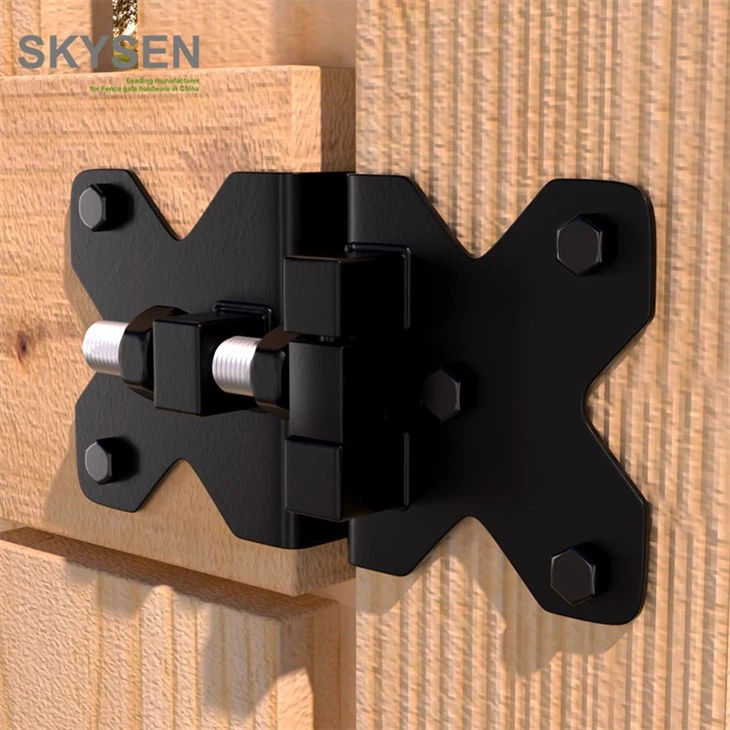

Wooden Field Gate Fittings are products of SKYSEN, a professional fence gate hardware manufacturer. They feature a stable X-shaped bracket structure, constructed from high-strength carbon steel or SS304 stainless steel, and secured with 10 M6 self-tapping screws for both load-bearing and rust-resistant performance. The modular design allows for precise adjustment of hinge spacing (with a 15mm adjustment range) and tension, adapting to varying gate thicknesses and weights (a single set supports up to 200kg). From home gardens to farm gates, their durable materials (electrophoretic coating offers 1000 hours of salt spray resistance) and scientific construction ensure long-term stable mounting, making them a premium hardware solution that balances practicality and durability.

•
  Easy to transport

  As well as improving the quality of our products, we are also reducing their weight and volume. This can not only make assembly and daily use more convenient, but also reduce the pressure and burden of shipment.

•
  Sturdy Load Resistance

  We have different sizes to choose from for different weights and thicknesses of gates. For its size, it has a very reliable load-bearing capacity because its material is durable, does not wear, break or deform easily and has a long service life.

•
  Modifiable

  The details can be adjusted to suit individual requirements. The distance between the plates can be changed by adjusting the nut and the tightness of the hinge pin can be adjusted with a tool through a small hole at the top. It is flexible and not fixed.

•
  Inexpensive

  If there is a large order, there will be consideration for a discount. As a consumable, the biggest advantage of them is that they do not require a lot of maintenance in terms of time, effort and overheads as they are of good quality. Overall, they are cost effective.

•
  Climate-tolerant

  The material is long-lasting. Its elasticity and ductility give it some resistance to external forces, and it will not break or deform too quickly. Coatings protect the internal materials by blocking external light and radiation, as well as water. This allows it to be used in a variety of environments and has a long service life.

•
  Easily cleanable

  There are not many gaps between the various parts of the hinge, and with the smooth coating it is not easy for a lot of dust and dirt to accumulate. Daily cleaning is therefore as simple as rinsing with water or a non-corrosive detergent, followed by a normal wipe.

1. Precise Adjustment: Hinge spacing can be adjusted within a 15mm range, and hinge pin tension can be adjusted to within a 0.5mm precision, adapting to thermal expansion and contraction of the door and installation tolerances.
2. Lightweight Shipping: Net weight per set is 1.2kg (30% lighter than cast iron fittings), and 50 sets are packed into a single box, reducing shipping costs by 35%.
3. Long-Term Maintenance: High-quality coating and stainless steel construction ensure a 12-month maintenance cycle (wipe with water only), reducing maintenance frequency by 70% compared to galvanized fittings.

The core materials of this product are carbon steel and SS304 stainless steel:
Carbon steel: Hot-rolled, with a tensile strength of ≥500 MPa, high hardness, and competitive cost. The surface is coated with an electrophoretic black coating (8-12 μm thick) to prevent corrosion and improve uniformity by 30% compared to spray painting.
SS304 stainless steel: Contains 8% nickel and 18% chromium, with a tensile strength of ≥520 MPa and an elongation of ≥40%, and is highly stable in humid, acidic, and alkaline environments.
Compared to traditional materials:
Compared to cast iron: 25% higher strength-to-weight ratio, making installation and transportation easier.
Compared to pure aluminum: 50% higher load-bearing capacity, suitable for large-sized doors.

SKYSEN is a leading manufacturer of fence and gate hardware in China. With 15 years of experience in export quality, we serve businesses in over 50 countries worldwide.
Quality Control: ISO9001 certified, with each batch subjected to salt spray and load-bearing testing, and a defective rate of less than 0.3%.
Production Capacity: Average daily capacity of 5,000 units, with 7-day shipping for regular orders and stable delivery times for large orders.
After-Sales: 2-hour response time for worry-free after-sales service.
